GenericManagingModule< T > Class Template Reference

Abstract base class for the managing modules. Managing modules are the highest tier of modules and are always run directly from the main loop. They can create a field and directly alter values within the simulation class . They can have an arbitrary number of submodules that they can execute themself when called. Each managing module can do different things during different times in the code managed via the chain insertion points and the corresponding functions in this class (Note: The internal "module_field" variable and the field they create in the sim class is NOT synced. You have to manually update the fields.) More...

#include <GenericManagingModule.h>

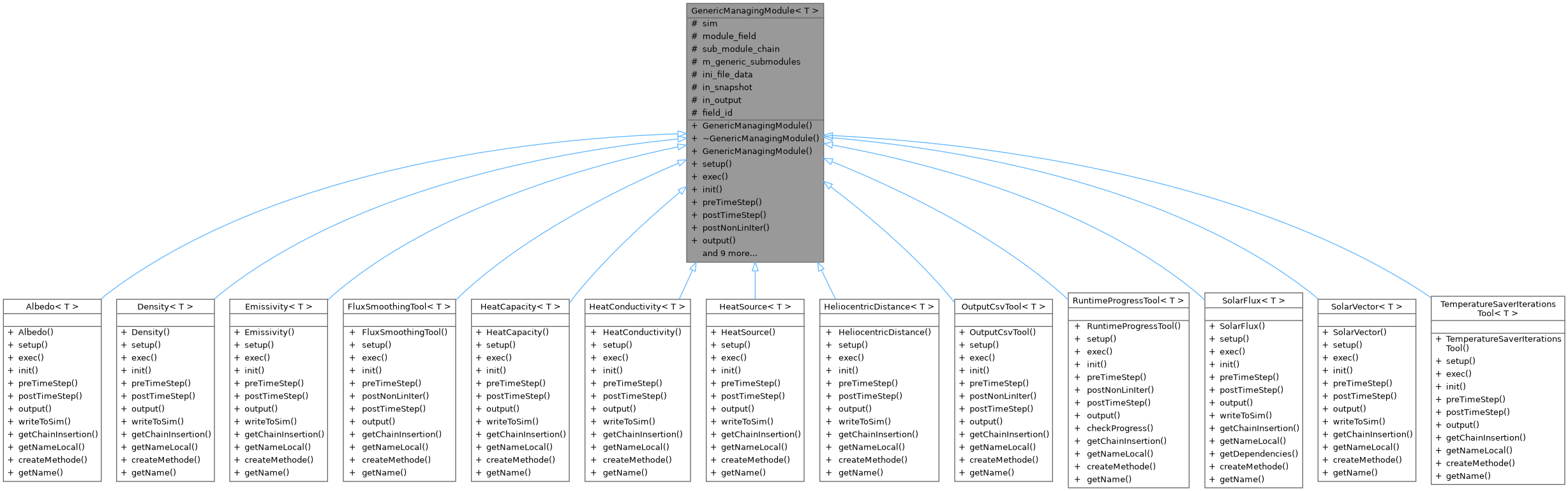

Inheritance diagram for GenericManagingModule< T >:

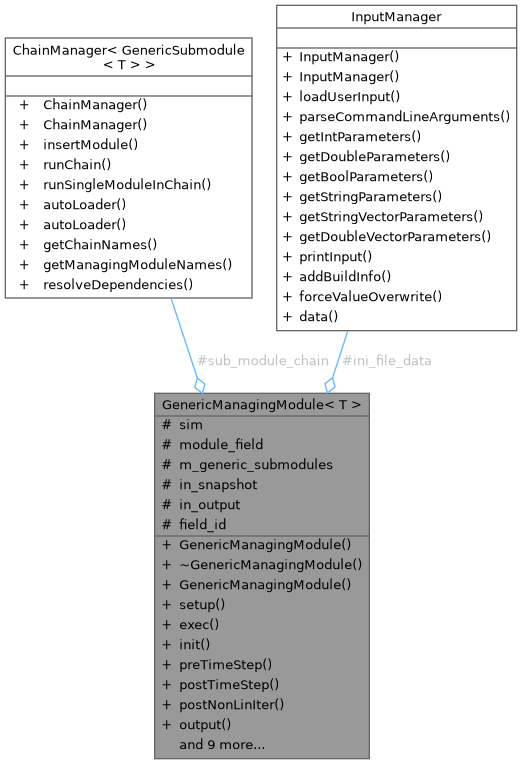

Collaboration diagram for GenericManagingModule< T >:

Public Member Functions
	GenericManagingModule ()
	Constructor without arguments. Will be employed when using the static modules registry.
virtual	~GenericManagingModule ()=default
	GenericManagingModule (SimulationClassBase< T > *l_sim)
	Constructor to be preferably used when a module is created during runtime.
virtual bool	setup (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
virtual bool	exec (std::string_view param)=0
virtual bool	init ()
virtual bool	preTimeStep ()
virtual bool	postTimeStep ()
virtual bool	postNonLinIter ()
virtual bool	output ()
virtual std::vector< std::string >	getChainInsertion () const
virtual std::vector< std::string >	getDependencies () const
virtual void	setSubmoduleList (std::vector< std::string > submodules)
std::vector< std::string >	getSubmoduleList () const
virtual std::string_view	getNameLocal () const =0
void	setSimPointer (SimulationClassBase< T > *sim)
	Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.
void	setSubmodules (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
	Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to this->module_field as a way to communicate between submodules.
void	writeToGlobalIniContent (std::ofstream &global_stream)
	Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".
void	overwriteLocalIniContent (const std::unordered_map< std::string, std::any > &global_ini_content)
	Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Protected Attributes
SimulationClassBase< T > *	sim {}
std::shared_ptr< std::valarray< T > >	module_field
ChainManager< GenericSubmodule< T > >	sub_module_chain
std::vector< std::string >	m_generic_submodules
InputManager	ini_file_data
bool	in_snapshot {false}
bool	in_output {false}
char	field_id

Detailed Description

template<typename T>
class GenericManagingModule< T >

Abstract base class for the managing modules. Managing modules are the highest tier of modules and are always run directly from the main loop. They can create a field and directly alter values within the simulation class . They can have an arbitrary number of submodules that they can execute themself when called. Each managing module can do different things during different times in the code managed via the chain insertion points and the corresponding functions in this class (Note: The internal "module_field" variable and the field they create in the sim class is NOT synced. You have to manually update the fields.)

Constructor & Destructor Documentation

GenericManagingModule() [1/2]

template<typename T >

GenericManagingModule< T >::GenericManagingModule ( )

inline

Constructor without arguments. Will be employed when using the static modules registry.

~GenericManagingModule()

template<typename T >

virtual GenericManagingModule< T >::~GenericManagingModule ( )

virtualdefault

GenericManagingModule() [2/2]

template<typename T >

GenericManagingModule< T >::GenericManagingModule ( SimulationClassBase< T > *  l_sim )

inline

Constructor to be preferably used when a module is created during runtime.

Parameters

l_sim

The pointer to the sim class.

Member Function Documentation

exec()

template<typename T >

virtual bool GenericManagingModule< T >::exec ( std::string_view  param )

pure virtual

Implemented in Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatConductivity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

getChainInsertion()

template<typename T >

virtual std::vector< std::string > GenericManagingModule< T >::getChainInsertion ( ) const

inlinevirtual

Reimplemented in Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatConductivity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

getDependencies()

template<typename T >

virtual std::vector< std::string > GenericManagingModule< T >::getDependencies ( ) const

inlinevirtual

Reimplemented in SolarFlux< T >.

getNameLocal()

template<typename T >

virtual std::string_view GenericManagingModule< T >::getNameLocal ( ) const

pure virtual

Implemented in Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatConductivity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

getSubmoduleList()

template<typename T >

std::vector< std::string > GenericManagingModule< T >::getSubmoduleList ( ) const

inline

init()

template<typename T >

virtual bool GenericManagingModule< T >::init ( )

inlinevirtual

Reimplemented in HeatConductivity< T >, Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

output()

template<typename T >

virtual bool GenericManagingModule< T >::output ( )

inlinevirtual

Reimplemented in Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatConductivity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

overwriteLocalIniContent()

template<typename T >

void GenericManagingModule< T >::overwriteLocalIniContent ( const std::unordered_map< std::string, std::any > &  global_ini_content )

inline

Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Parameters

global_ini_content

The map containing the local partition of this module within the global ini file.

postNonLinIter()

template<typename T >

virtual bool GenericManagingModule< T >::postNonLinIter ( )

inlinevirtual

Reimplemented in FluxSmoothingTool< T >, OutputCsvTool< T >, and RuntimeProgressTool< T >.

postTimeStep()

template<typename T >

virtual bool GenericManagingModule< T >::postTimeStep ( )

inlinevirtual

Reimplemented in Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatConductivity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

preTimeStep()

template<typename T >

virtual bool GenericManagingModule< T >::preTimeStep ( )

inlinevirtual

Reimplemented in Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatConductivity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

setSimPointer()

template<typename T >

void GenericManagingModule< T >::setSimPointer ( SimulationClassBase< T > *  sim )

inline

Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.

setSubmoduleList()

template<typename T >

virtual void GenericManagingModule< T >::setSubmoduleList ( std::vector< std::string >  submodules )

inlinevirtual

setSubmodules()

template<typename T >

void GenericManagingModule< T >::setSubmodules ( std::vector< std::shared_ptr< GenericSubmodule< T > > >  all_submodules )

inline

Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to this->module_field as a way to communicate between submodules.

setup()

template<typename T >

virtual bool GenericManagingModule< T >::setup ( std::vector< std::shared_ptr< GenericSubmodule< T > > >  all_submodules )

inlinevirtual

Reimplemented in Albedo< T >, Density< T >, Emissivity< T >, HeatCapacity< T >, HeatConductivity< T >, HeatSource< T >, HeliocentricDistance< T >, SolarFlux< T >, SolarVector< T >, FluxSmoothingTool< T >, OutputCsvTool< T >, RuntimeProgressTool< T >, and TemperatureSaverIterationsTool< T >.

writeToGlobalIniContent()

template<typename T >

void GenericManagingModule< T >::writeToGlobalIniContent ( std::ofstream &  global_stream )

inline

Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".

Parameters

global_stream

The outstream containing all ini file data.

Member Data Documentation

field_id

template<typename T >

char GenericManagingModule< T >::field_id

protected

Initial value:

{
            '?'}

in_output

template<typename T >

bool GenericManagingModule< T >::in_output {false}

protected

in_snapshot

template<typename T >

bool GenericManagingModule< T >::in_snapshot {false}

protected

ini_file_data

template<typename T >

InputManager GenericManagingModule< T >::ini_file_data

protected

m_generic_submodules

template<typename T >

std::vector<std::string> GenericManagingModule< T >::m_generic_submodules

protected

module_field

template<typename T >

std::shared_ptr<std::valarray<T> > GenericManagingModule< T >::module_field

protected

sim

template<typename T >

SimulationClassBase<T>* GenericManagingModule< T >::sim {}

protected

sub_module_chain

template<typename T >

ChainManager<GenericSubmodule<T> > GenericManagingModule< T >::sub_module_chain

protected

Initial value:

{
            "global"}

---

The documentation for this class was generated from the following file:

• src/GenericManagingModule.h
