GenericSubmodule< T > Class Template Reference

Abstract base class for the submodules. Submodules are below managing modules and will only be run by them, not directly from the sim class. They can neither create fields (only access the local fields of their managing modules) nor alter elements in the sim class (they only posses a pointer to const). They can however also have an arbitrary number of submodules that they can execute themself when called. Their structure is otherwise a direct mirror of the managing modules. More...

#include <GenericSubmodule.h>

Inheritance diagram for GenericSubmodule< T >:

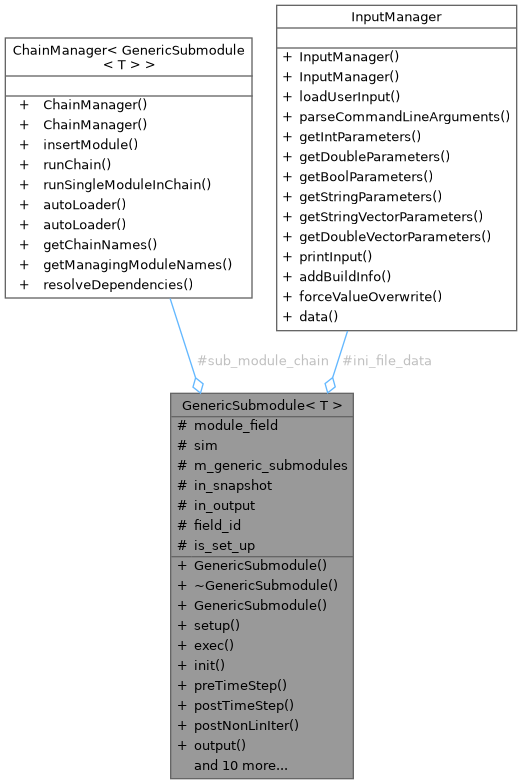

Collaboration diagram for GenericSubmodule< T >:

Public Member Functions
	GenericSubmodule ()
	Constructor without arguments. Will be employed when using the static modules registry.
virtual	~GenericSubmodule ()=default
	GenericSubmodule (const SimulationClassBase< T > *l_sim)
	Constructor to be preferably used when a module is created during runtime.
virtual bool	setup (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
virtual bool	exec (std::string_view param)=0
virtual bool	init ()
virtual bool	preTimeStep ()
virtual bool	postTimeStep ()
virtual bool	postNonLinIter ()
virtual bool	output ()
virtual std::vector< std::string >	getDependencies () const
std::vector< std::string >	getSubmoduleList () const
bool	isSetUp ()
void	submodulesSetUp ()
virtual std::string_view	getNameLocal () const =0
virtual void	setFieldPtr (std::shared_ptr< std::valarray< T > > field_ptr)
void	setSimPointer (SimulationClassBase< T > *sim)
	Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.
void	setSubmodules (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
	Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to the field pointer of the managing module as a way to communicate between submodules.
void	writeToGlobalIniContent (std::ofstream &global_stream)
	Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".
void	overwriteLocalIniContent (const std::unordered_map< std::string, std::any > &global_ini_content)
	Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Protected Attributes
ChainManager< GenericSubmodule< T > >	sub_module_chain
std::shared_ptr< std::valarray< T > >	module_field
const SimulationClassBase< T > *	sim {}
std::vector< std::string >	m_generic_submodules
InputManager	ini_file_data
bool	in_snapshot {false}
bool	in_output {false}
char	field_id
bool	is_set_up {false}

Detailed Description

template<typename T>
class GenericSubmodule< T >

Abstract base class for the submodules. Submodules are below managing modules and will only be run by them, not directly from the sim class. They can neither create fields (only access the local fields of their managing modules) nor alter elements in the sim class (they only posses a pointer to const). They can however also have an arbitrary number of submodules that they can execute themself when called. Their structure is otherwise a direct mirror of the managing modules.

Constructor & Destructor Documentation

GenericSubmodule() [1/2]

template<typename T >

GenericSubmodule< T >::GenericSubmodule ( )

inline

Constructor without arguments. Will be employed when using the static modules registry.

~GenericSubmodule()

template<typename T >

virtual GenericSubmodule< T >::~GenericSubmodule ( )

virtualdefault

GenericSubmodule() [2/2]

template<typename T >

GenericSubmodule< T >::GenericSubmodule ( const SimulationClassBase< T > *  l_sim )

inline

Constructor to be preferably used when a module is created during runtime.

Parameters

l_sim

The pointer to the sim class.

Member Function Documentation

exec()

template<typename T >

virtual bool GenericSubmodule< T >::exec ( std::string_view  param )

pure virtual

Implemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

getDependencies()

template<typename T >

virtual std::vector< std::string > GenericSubmodule< T >::getDependencies ( ) const

inlinevirtual

Reimplemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

getNameLocal()

template<typename T >

virtual std::string_view GenericSubmodule< T >::getNameLocal ( ) const

pure virtual

Implemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

getSubmoduleList()

template<typename T >

std::vector< std::string > GenericSubmodule< T >::getSubmoduleList ( ) const

inline

init()

template<typename T >

virtual bool GenericSubmodule< T >::init ( )

inlinevirtual

Reimplemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

isSetUp()

template<typename T >

bool GenericSubmodule< T >::isSetUp ( )

inline

output()

template<typename T >

virtual bool GenericSubmodule< T >::output ( )

inlinevirtual

Reimplemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

overwriteLocalIniContent()

template<typename T >

void GenericSubmodule< T >::overwriteLocalIniContent ( const std::unordered_map< std::string, std::any > &  global_ini_content )

inline

Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Parameters

global_ini_content

The map containing the local partition of this module within the global ini file.

postNonLinIter()

template<typename T >

virtual bool GenericSubmodule< T >::postNonLinIter ( )

inlinevirtual

postTimeStep()

template<typename T >

virtual bool GenericSubmodule< T >::postTimeStep ( )

inlinevirtual

Reimplemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

preTimeStep()

template<typename T >

virtual bool GenericSubmodule< T >::preTimeStep ( )

inlinevirtual

Reimplemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

setFieldPtr()

template<typename T >

virtual void GenericSubmodule< T >::setFieldPtr ( std::shared_ptr< std::valarray< T > >  field_ptr )

inlinevirtual

Reimplemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

setSimPointer()

template<typename T >

void GenericSubmodule< T >::setSimPointer ( SimulationClassBase< T > *  sim )

inline

Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.

setSubmodules()

template<typename T >

void GenericSubmodule< T >::setSubmodules ( std::vector< std::shared_ptr< GenericSubmodule< T > > >  all_submodules )

inline

Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to the field pointer of the managing module as a way to communicate between submodules.

setup()

template<typename T >

virtual bool GenericSubmodule< T >::setup ( std::vector< std::shared_ptr< GenericSubmodule< T > > >  all_submodules )

inlinevirtual

Reimplemented in AlbedoConstantCustom< T >, DensityConstantCustom< T >, DensityConstantGundlach2013RegolithSolidAsteroidType< T >, EmissivityConstantCustom< T >, HeatCapacityConstantCustom< T >, HeatCapacityConstantOpeil2010NonPorousRockSolidAsteroidType< T >, HeatCapacityVariableCustomPolynomial< T >, HeatConductivityConstantCustom< T >, HeatConductivityConstantMaxwell1873PorousRockSolid< T >, HeatConductivityTwoLayers< T >, HeatConductivityVariableGundlach2013NonPorousRockSolidAsteroidType< T >, HeatConductivityVariableGundlach2013RegolithSolid< T >, HeatConductivityVariableKiradjiev2019PorousRockSolidRadiation< T >, HeatSourceConstantCustom< T >, HeliocentricDistanceConstantCustom< T >, SolarFluxVariableCustomSinusoidal< T >, and SolarVectorConstantCustom< T >.

submodulesSetUp()

template<typename T >

void GenericSubmodule< T >::submodulesSetUp ( )

inline

writeToGlobalIniContent()

template<typename T >

void GenericSubmodule< T >::writeToGlobalIniContent ( std::ofstream &  global_stream )

inline

Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".

Parameters

global_stream

The outstream containing all ini file data.

Member Data Documentation

field_id

template<typename T >

char GenericSubmodule< T >::field_id

protected

Initial value:

{
            '?'}

in_output

template<typename T >

bool GenericSubmodule< T >::in_output {false}

protected

in_snapshot

template<typename T >

bool GenericSubmodule< T >::in_snapshot {false}

protected

ini_file_data

template<typename T >

InputManager GenericSubmodule< T >::ini_file_data

protected

is_set_up

template<typename T >

bool GenericSubmodule< T >::is_set_up {false}

protected

m_generic_submodules

template<typename T >

std::vector<std::string> GenericSubmodule< T >::m_generic_submodules

protected

module_field

template<typename T >

std::shared_ptr<std::valarray<T> > GenericSubmodule< T >::module_field

protected

sim

template<typename T >

const SimulationClassBase<T>* GenericSubmodule< T >::sim {}

protected

sub_module_chain

template<typename T >

ChainManager<GenericSubmodule<T> > GenericSubmodule< T >::sub_module_chain

protected

Initial value:

{
            "global"}

---

The documentation for this class was generated from the following file:

• src/GenericSubmodule.h
