RuntimeProgressTool< T > Class Template Reference

Monitors and reports the simulation progress and iterations per second. More...

#include <RuntimeProgressTool.h>

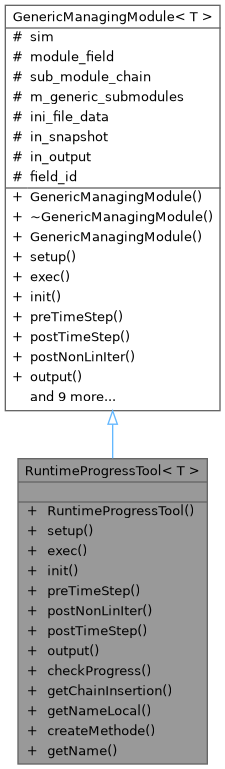

Inheritance diagram for RuntimeProgressTool< T >:

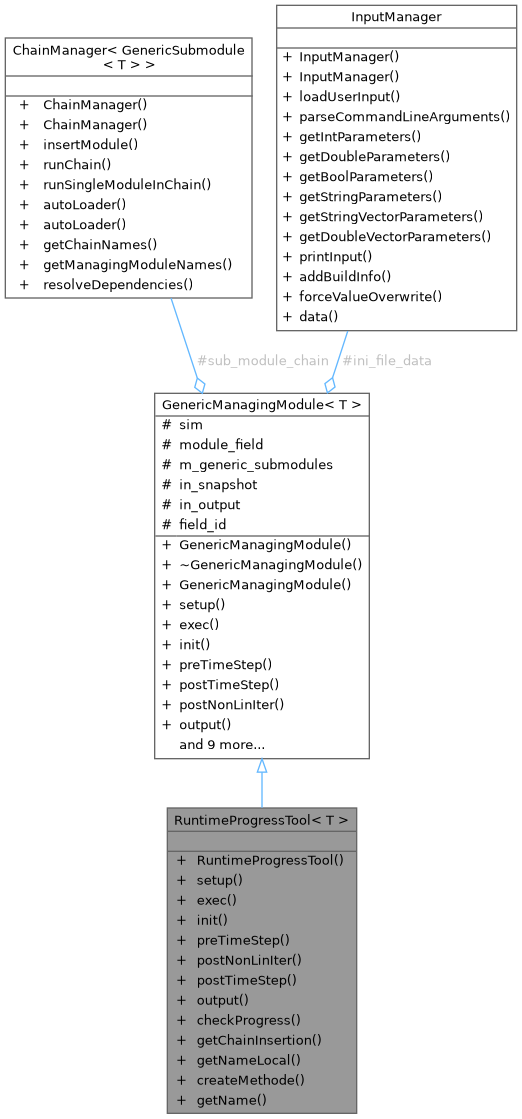

Collaboration diagram for RuntimeProgressTool< T >:

Public Member Functions
	RuntimeProgressTool (SimulationClassBase< T > *sim)
bool	setup (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules) override
bool	exec (std::string_view param) override
bool	init () override
bool	preTimeStep () override
bool	postNonLinIter () override
bool	postTimeStep () override
bool	output () override
void	checkProgress ()
std::vector< std::string >	getChainInsertion () const override
std::string_view	getNameLocal () const override
Public Member Functions inherited from GenericManagingModule< T >
	GenericManagingModule ()
	Constructor without arguments. Will be employed when using the static modules registry.
virtual	~GenericManagingModule ()=default
	GenericManagingModule (SimulationClassBase< T > *l_sim)
	Constructor to be preferably used when a module is created during runtime.
virtual std::vector< std::string >	getDependencies () const
virtual void	setSubmoduleList (std::vector< std::string > submodules)
std::vector< std::string >	getSubmoduleList () const
void	setSimPointer (SimulationClassBase< T > *sim)
	Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.
void	setSubmodules (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
	Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to this->module_field as a way to communicate between submodules.
void	writeToGlobalIniContent (std::ofstream &global_stream)
	Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".
void	overwriteLocalIniContent (const std::unordered_map< std::string, std::any > &global_ini_content)
	Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Static Public Member Functions
static std::shared_ptr< GenericManagingModule< T > >	createMethode (SimulationClassBase< T > *sim)
static std::string	getName ()

Additional Inherited Members
Protected Attributes inherited from GenericManagingModule< T >
SimulationClassBase< T > *	sim {}
std::shared_ptr< std::valarray< T > >	module_field
ChainManager< GenericSubmodule< T > >	sub_module_chain
std::vector< std::string >	m_generic_submodules
InputManager	ini_file_data
bool	in_snapshot {false}
bool	in_output {false}
char	field_id

Detailed Description

template<typename T>
class RuntimeProgressTool< T >

Monitors and reports the simulation progress and iterations per second.

This managing module provides real-time feedback on the simulation runtime by calculating the number of iterations per second and printing progress updates to the console. It is particularly useful for long-running simulations to estimate remaining runtime and monitor performance.

Key Features:

• Reports the number of completed time steps and total time steps.
• Calculates simulation speed (iterations per second) both for the last reporting interval and for the total runtime since start.
• Configurable reporting interval via an INI file.
• Uses high-resolution timers to provide precise timing measurements.
• Prints updates to the console with optional ANSI escape codes for color highlighting.

Template Parameters

T	Numeric type used in the simulation (e.g., float, double)

Note

Requires proper INI configuration specifying the iteration reporting interval. Designed for console-based monitoring; ANSI color codes may not display correctly in all terminals.

Constructor & Destructor Documentation

RuntimeProgressTool()

template<typename T >

RuntimeProgressTool< T >::RuntimeProgressTool

(

SimulationClassBase< T > *

sim

)

Member Function Documentation

checkProgress()

template<typename T >

void RuntimeProgressTool< T >::checkProgress

(

)

createMethode()

template<typename T >

static std::shared_ptr< GenericManagingModule< T > > RuntimeProgressTool< T >::createMethode ( SimulationClassBase< T > *  sim )

inlinestatic

exec()

template<typename T >

bool RuntimeProgressTool< T >::exec ( std::string_view  param )

overridevirtual

Implements GenericManagingModule< T >.

getChainInsertion()

template<typename T >

std::vector< std::string > RuntimeProgressTool< T >::getChainInsertion ( ) const

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

getName()

template<typename T >

static std::string RuntimeProgressTool< T >::getName ( )

inlinestatic

getNameLocal()

template<typename T >

std::string_view RuntimeProgressTool< T >::getNameLocal ( ) const

inlineoverridevirtual

Implements GenericManagingModule< T >.

init()

template<typename T >

bool RuntimeProgressTool< T >::init ( )

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

output()

template<typename T >

bool RuntimeProgressTool< T >::output ( )

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

postNonLinIter()

template<typename T >

bool RuntimeProgressTool< T >::postNonLinIter ( )

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

postTimeStep()

template<typename T >

bool RuntimeProgressTool< T >::postTimeStep ( )

overridevirtual

Reimplemented from GenericManagingModule< T >.

preTimeStep()

template<typename T >

bool RuntimeProgressTool< T >::preTimeStep ( )

overridevirtual

Reimplemented from GenericManagingModule< T >.

setup()

template<typename T >

bool RuntimeProgressTool< T >::setup ( std::vector< std::shared_ptr< GenericSubmodule< T > > >  all_submodules )

overridevirtual

Reimplemented from GenericManagingModule< T >.

---

The documentation for this class was generated from the following file:

• modules/tools/RuntimeProgressTool.h
