Managing module that calculates bulk density based on submodules. More...

#include <Density.h>

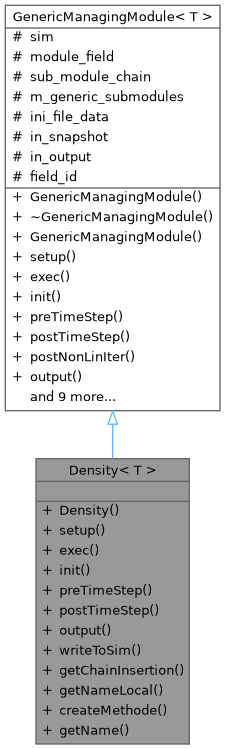

Inheritance diagram for Density< T >:

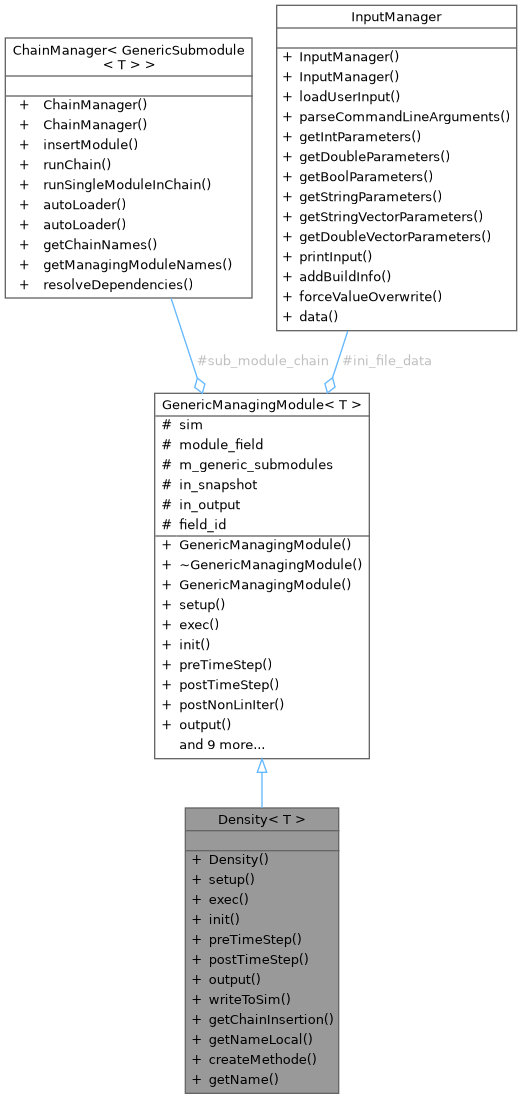

Collaboration diagram for Density< T >:

Public Member Functions
	Density (SimulationClassBase< T > *sim)
	Construct the Density module.

bool	setup (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules) override
	Setup method called after construction.

bool	exec (std::string_view param) override
	Main execution method of the module.

bool	init () override
	Initialization step.

bool	preTimeStep () override
	Pre-time-step processing.

bool	postTimeStep () override
	Post-time-step processing.

bool	output () override
	Output stage.

void	writeToSim ()
	Write the current density field to the simulation.

std::vector< std::string >	getChainInsertion () const override
	Get chain insertion points.

std::string_view	getNameLocal () const override
	Get the localized name of the module.

Public Member Functions inherited from GenericManagingModule< T >
	GenericManagingModule ()
	Constructor without arguments. Will be employed when using the static modules registry.

virtual	~GenericManagingModule ()=default

	GenericManagingModule (SimulationClassBase< T > *l_sim)
	Constructor to be preferably used when a module is created during runtime.

virtual bool	postNonLinIter ()

virtual std::vector< std::string >	getDependencies () const

virtual void	setSubmoduleList (std::vector< std::string > submodules)

std::vector< std::string >	getSubmoduleList () const

void	setSimPointer (SimulationClassBase< T > *sim)
	Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.

void	setSubmodules (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
	Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to this->module_field as a way to communicate between submodules.

void	writeToGlobalIniContent (std::ofstream &global_stream)
	Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".

void	overwriteLocalIniContent (const std::unordered_map< std::string, std::any > &global_ini_content)
	Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Static Public Member Functions
static std::shared_ptr< GenericManagingModule< T > >	createMethode (SimulationClassBase< T > *sim)
	Factory method for creating a Density module.

static std::string	getName ()
	Get the name of the module.

Additional Inherited Members
Protected Attributes inherited from GenericManagingModule< T >
SimulationClassBase< T > *	sim {}

std::shared_ptr< std::valarray< T > >	module_field

ChainManager< GenericSubmodule< T > >	sub_module_chain

std::vector< std::string >	m_generic_submodules

InputManager	ini_file_data

bool	in_snapshot {false}

bool	in_output {false}

char	field_id

Detailed Description

template<typename T>
class Density< T >

Managing module that calculates bulk density based on submodules.

The Density module:

Loads configuration from an .ini file
Sets up submodules responsible for bulk density calculations
Integrates into the simulation execution chain (Init, PreTimeStep, PostTimeStep, Output)
Updates the simulation's "Density" field

Template Parameters

T	Numeric type used in the simulation (e.g., float, double).

Constructor & Destructor Documentation

◆ Density()

template<typename T >

Density< T >::Density ( SimulationClassBase< T > * sim )

Construct the Density module.

Loads user configuration from the .ini file and initializes the submodule list.

Parameters

sim	Pointer to the simulation base class.

Member Function Documentation

◆ createMethode()

template<typename T >

static std::shared_ptr< GenericManagingModule< T > > Density< T >::createMethode ( SimulationClassBase< T > * sim )

inlinestatic

Factory method for creating a Density module.

Used by the ModuleFactory to dynamically create instances.

Parameters

sim	Pointer to the simulation base class.

Returns: Shared pointer to the newly created Density instance.

◆ exec()

template<typename T >

bool Density< T >::exec ( std::string_view param )

overridevirtual

Main execution method of the module.

Dispatches calls to the corresponding chain stage based on the given parameter:

"InitChain"
"PreTimeStepChain"
"PostTimeStepChain"
"OutputChain"

Parameters

param String indicating which chain stage to run.

Returns: True if the stage executed successfully, false otherwise.

Implements GenericManagingModule< T >.

◆ getChainInsertion()

template<typename T >

std::vector< std::string > Density< T >::getChainInsertion ( ) const

inlineoverridevirtual

Get chain insertion points.

Reads the list of chain stages where this module should be inserted from the .ini file parameter "chain_insertion".

Returns: Vector of chain stage names.

Reimplemented from GenericManagingModule< T >.

◆ getName()

template<typename T >

static std::string Density< T >::getName ( )

inlinestatic

Get the name of the module.

Returns: The string "Density".

◆ getNameLocal()

template<typename T >

std::string_view Density< T >::getNameLocal ( ) const

inlineoverridevirtual

Get the localized name of the module.

Returns: The string "Density".

Implements GenericManagingModule< T >.

◆ init()

template<typename T >

bool Density< T >::init ( )

overridevirtual

Initialization step.

Runs the submodule chain’s initialization stage and writes results to the simulation.

Returns: True on success.

Reimplemented from GenericManagingModule< T >.

◆ output()

template<typename T >

bool Density< T >::output ( )

inlineoverridevirtual

Output stage.

Currently does nothing except return success.

Returns: Always true.

Reimplemented from GenericManagingModule< T >.

◆ postTimeStep()

template<typename T >

bool Density< T >::postTimeStep ( )

inlineoverridevirtual

Post-time-step processing.

Currently does nothing except return success.

Returns: Always true.

Reimplemented from GenericManagingModule< T >.

◆ preTimeStep()

template<typename T >

bool Density< T >::preTimeStep ( )

overridevirtual

Pre-time-step processing.

Runs the submodule chain’s pre-time-step stage and writes results to the simulation.

Returns: True on success.

Reimplemented from GenericManagingModule< T >.

◆ setup()

template<typename T >

bool Density< T >::setup ( std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules )

overridevirtual

Setup method called after construction.

Initializes the density field in the simulation’s field map and sets submodules.

Parameters

all_submodules List of all available submodules.

Returns: True on success.

Reimplemented from GenericManagingModule< T >.

◆ writeToSim()

template<typename T >

void Density< T >::writeToSim ( )

Write the current density field to the simulation.

Updates the simulation’s "Density" field with the values from module_field.

The documentation for this class was generated from the following file:

modules/density/Density.h
