GridOneDim< T > Class Template Reference

Concrete implementation of a 1D grid on each facet of a 3D shape model (hereafter: pseudo 3D). More...

#include <GridOneDim.h>

Inheritance diagram for GridOneDim< T >:

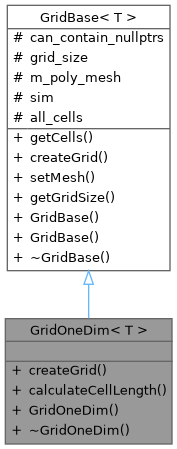

Collaboration diagram for GridOneDim< T >:

Public Member Functions
void	createGrid () override
	Creation function for a pseudo 3D grid, assuming a shape model is given. True 1D geometries can be constructed by passing a one facet "shape model". Creates a number of cells specified by the number of facets times the number of numerical layers-1 (corresponding to the number of nodes). The shift by 1 is due to the 1D grids having a number of nodes that is equal to the number of cells + 1.
T	calculateCellLength ()
	GridOneDim (SimulationClassBase< T > *sim_ptr, std::shared_ptr< ShapeBase< T > > mesh_ptr)
	Constructor for a OneDimGrid object.
	~GridOneDim ()=default
Public Member Functions inherited from GridBase< T >
std::vector< std::unique_ptr< GenericElement< T > > > &	getCells ()
void	setMesh (std::shared_ptr< ShapeBase< T > > mesh)
	Sets the bounding surface mesh for the object, if a mesh is used.
int	getGridSize () const
	GridBase ()
	Default Constructor.
	GridBase (SimulationClassBase< T > *sim_ptr, std::shared_ptr< ShapeBase< T > > mesh_ptr)
	Constructor for the empty grid class, as each concrete grid needs to be built differently.
	~GridBase ()=default

Additional Inherited Members
Protected Attributes inherited from GridBase< T >
bool	can_contain_nullptrs {false}
int	grid_size {-1}
std::shared_ptr< ShapeBase< T > >	m_poly_mesh {}
SimulationClassBase< T > *	sim {}
std::vector< std::unique_ptr< GenericElement< T > > >	all_cells {}

Detailed Description

template<typename T>
class GridOneDim< T >

Concrete implementation of a 1D grid on each facet of a 3D shape model (hereafter: pseudo 3D).

Constructor & Destructor Documentation

GridOneDim()

template<typename T >

GridOneDim< T >::GridOneDim	(	SimulationClassBase< T > *	sim_ptr,
		std::shared_ptr< ShapeBase< T > >	mesh_ptr
	)

Constructor for a OneDimGrid object.

Parameters

sim_ptr

Pointer to the sim class.

~GridOneDim()

template<typename T >

GridOneDim< T >::~GridOneDim ( )

default

Member Function Documentation

calculateCellLength()

template<typename T >

T GridOneDim< T >::calculateCellLength

(

)

createGrid()

template<typename T >

void GridOneDim< T >::createGrid ( )

overridevirtual

Creation function for a pseudo 3D grid, assuming a shape model is given. True 1D geometries can be constructed by passing a one facet "shape model". Creates a number of cells specified by the number of facets times the number of numerical layers-1 (corresponding to the number of nodes). The shift by 1 is due to the 1D grids having a number of nodes that is equal to the number of cells + 1.

Implements GridBase< T >.

---

The documentation for this class was generated from the following file:

• src/GridOneDim.h
