GenericMatrix< T > Class Template Reference

Template generalized Matrix object that should be the base for all further implementations of a matrix class. Only provides the most basic functionality and contains mainly pure virtual functions. More...

#include <GenericMatrix.h>

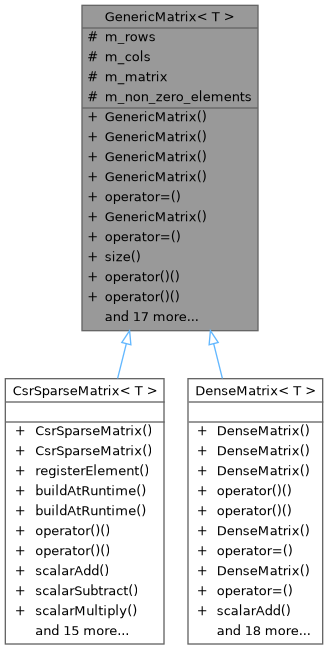

Inheritance diagram for GenericMatrix< T >:

Collaboration diagram for GenericMatrix< T >:

Public Member Functions
	GenericMatrix ()
	Constructor for an empty GenericMatrix object. This should only be used for dynamically created matrices.
	GenericMatrix (int rows, int cols)
	Constructor for an empty GenericMatrix object whose value array holds rows*cols values.
	GenericMatrix (int rows, int cols, const std::valarray< T > &values, bool allow_mismatched_size)
	Constructor for a GenericMatrix object whose value array holds rows*cols values given by the user. Can throw an std::ivalid_argument if provided with a value array of different size than rows*cols.
	GenericMatrix (const GenericMatrix &)=default
GenericMatrix &	operator= (const GenericMatrix &)=default
	GenericMatrix (GenericMatrix &&)=default
GenericMatrix &	operator= (GenericMatrix &&)=default
std::pair< int, int >	size () const
	Function that returns the size of the matrix as a pair in (rows, columns) format.
virtual T &	operator() (int rows, int cols)=0
virtual T	operator() (int rows, int cols) const =0
virtual std::valarray< T >	scalarAdd (T value) const =0
virtual std::valarray< T >	scalarSubtract (T value) const =0
virtual std::valarray< T >	scalarMultiply (T value) const =0
virtual std::valarray< T >	scalarDivide (T value) const =0
virtual std::valarray< T >	vectorElemAdd (const std::valarray< T > &value) const =0
virtual std::valarray< T >	vectorElemSubtract (const std::valarray< T > &value) const =0
virtual std::valarray< T >	vectorElemMultiply (const std::valarray< T > &value) const =0
virtual std::valarray< T >	vectorElemDivide (const std::valarray< T > &value) const =0
virtual std::valarray< T >	matrixVectorMultiplication (const std::valarray< T > &value) const =0
virtual void	buildAtRuntime (int rows, int cols)=0
virtual void	registerElement (T value, int rows, int cols)
virtual void	updateNonZeroElements ()=0
virtual const std::vector< std::pair< int, int > > &	getNonZeroElements ()=0
virtual const MatrixType	getMatrixType ()=0
void	zeroMatrix ()
	Function that zeros out the matrix.
void	overwriteMatrixValues (const std::valarray< T > &value)
	Overwrites the matrix values with a new valarray. This is used for optimized overwrite when arithmetic operations on multiple matrices are used.
virtual	~GenericMatrix ()=default

Protected Attributes
int	m_rows {0}
int	m_cols {0}
std::valarray< T >	m_matrix {}
std::vector< std::pair< int, int > >	m_non_zero_elements

Detailed Description

template<typename T>
class GenericMatrix< T >

Template generalized Matrix object that should be the base for all further implementations of a matrix class. Only provides the most basic functionality and contains mainly pure virtual functions.

Constructor & Destructor Documentation

GenericMatrix() [1/5]

template<typename T >

GenericMatrix< T >::GenericMatrix

(

)

Constructor for an empty GenericMatrix object. This should only be used for dynamically created matrices.

GenericMatrix() [2/5]

template<typename T >

GenericMatrix< T >::GenericMatrix	(	int	rows,
		int	cols
	)

Constructor for an empty GenericMatrix object whose value array holds rows*cols values.

Parameters

rows	The number of rows.
cols	The number of columns.

GenericMatrix() [3/5]

template<typename T >

GenericMatrix< T >::GenericMatrix	(	int	rows,
		int	cols,
		const std::valarray< T > &	values,
		bool	allow_mismatched_size
	)

Constructor for a GenericMatrix object whose value array holds rows*cols values given by the user. Can throw an std::ivalid_argument if provided with a value array of different size than rows*cols.

Parameters

rows	The number of rows.
cols	The number of columns.
values	The values to be stored in the m_matrix valarray.

GenericMatrix() [4/5]

template<typename T >

GenericMatrix< T >::GenericMatrix ( const GenericMatrix< T > &  )

default

GenericMatrix() [5/5]

template<typename T >

GenericMatrix< T >::GenericMatrix ( GenericMatrix< T > &&  )

default

~GenericMatrix()

template<typename T >

virtual GenericMatrix< T >::~GenericMatrix ( )

virtualdefault

Member Function Documentation

buildAtRuntime()

template<typename T >

virtual void GenericMatrix< T >::buildAtRuntime ( int  rows, int  cols  )

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

getMatrixType()

template<typename T >

virtual const MatrixType GenericMatrix< T >::getMatrixType ( )

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

getNonZeroElements()

template<typename T >

virtual const std::vector< std::pair< int, int > > & GenericMatrix< T >::getNonZeroElements ( )

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

matrixVectorMultiplication()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::matrixVectorMultiplication ( const std::valarray< T > &  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

operator()() [1/2]

template<typename T >

virtual T GenericMatrix< T >::operator() ( int  rows, int  cols  ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

operator()() [2/2]

template<typename T >

virtual T & GenericMatrix< T >::operator() ( int  rows, int  cols  )

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

operator=() [1/2]

template<typename T >

GenericMatrix & GenericMatrix< T >::operator= ( const GenericMatrix< T > &  )

default

operator=() [2/2]

template<typename T >

GenericMatrix & GenericMatrix< T >::operator= ( GenericMatrix< T > &&  )

default

overwriteMatrixValues()

template<typename T >

void GenericMatrix< T >::overwriteMatrixValues

(

const std::valarray< T > &

value

)

Overwrites the matrix values with a new valarray. This is used for optimized overwrite when arithmetic operations on multiple matrices are used.

Template Parameters

T	Numeric type used in the simulation (e.g., float, double).

Parameters

value

The new matrix values which will overwrite the previous ones.

registerElement()

template<typename T >

virtual void GenericMatrix< T >::registerElement ( T  value, int  rows, int  cols  )

inlinevirtual

Reimplemented in CsrSparseMatrix< T >.

scalarAdd()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::scalarAdd ( T  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

scalarDivide()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::scalarDivide ( T  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

scalarMultiply()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::scalarMultiply ( T  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

scalarSubtract()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::scalarSubtract ( T  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

size()

template<typename T >

std::pair< int, int > GenericMatrix< T >::size

(

)

const

Function that returns the size of the matrix as a pair in (rows, columns) format.

updateNonZeroElements()

template<typename T >

virtual void GenericMatrix< T >::updateNonZeroElements ( )

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

vectorElemAdd()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::vectorElemAdd ( const std::valarray< T > &  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

vectorElemDivide()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::vectorElemDivide ( const std::valarray< T > &  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

vectorElemMultiply()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::vectorElemMultiply ( const std::valarray< T > &  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

vectorElemSubtract()

template<typename T >

virtual std::valarray< T > GenericMatrix< T >::vectorElemSubtract ( const std::valarray< T > &  value ) const

pure virtual

Implemented in CsrSparseMatrix< T >, and DenseMatrix< T >.

zeroMatrix()

template<typename T >

void GenericMatrix< T >::zeroMatrix

(

)

Function that zeros out the matrix.

Member Data Documentation

m_cols

template<typename T >

int GenericMatrix< T >::m_cols {0}

protected

m_matrix

template<typename T >

std::valarray<T> GenericMatrix< T >::m_matrix {}

protected

m_non_zero_elements

template<typename T >

std::vector<std::pair<int, int> > GenericMatrix< T >::m_non_zero_elements

protected

m_rows

template<typename T >

int GenericMatrix< T >::m_rows {0}

protected

---

The documentation for this class was generated from the following file:

• src/GenericMatrix.h
