GenericBoundaryCondition< T > Class Template Reference

Boundary condition abstract base class for the finite element method. All boundary condition implementations should inherit from this class. More...

#include <GenericBoundaryCondition.h>

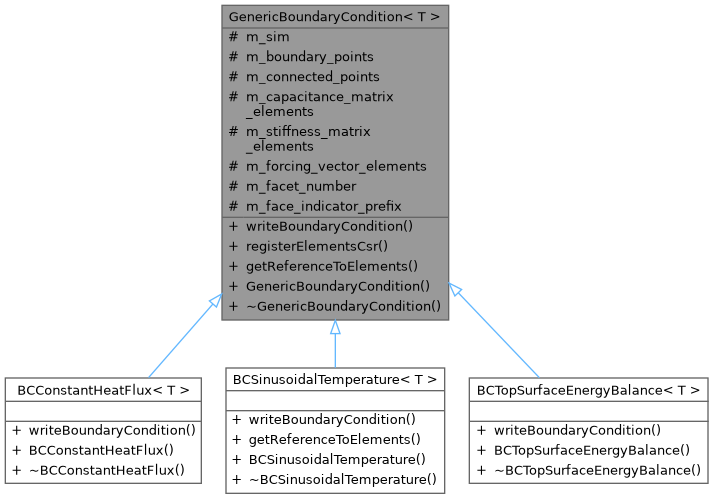

Inheritance diagram for GenericBoundaryCondition< T >:

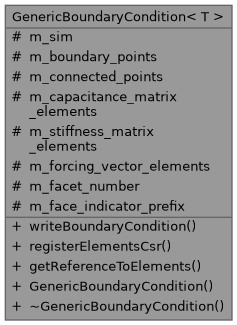

Collaboration diagram for GenericBoundaryCondition< T >:

Public Member Functions
virtual void	writeBoundaryCondition ()=0
void	registerElementsCsr (GenericMatrix< T > &capacitance_matrix, GenericMatrix< T > &stiffness_matrix)
virtual void	getReferenceToElements (GenericMatrix< T > &capacitance_matrix, GenericMatrix< T > &stiffness_matrix, std::valarray< T > &forcing_vector)
	Sets up a referrence_wrapper vector to the elements within the matrix object. This adds a bit of pre-calculation overhead, but always allows const time element access even for matrix object that don't normally have const time random access. This of course assumes a static grid.
	GenericBoundaryCondition (SimulationClassBase< T > *sim, std::vector< int > boundary_points, std::vector< std::vector< int > > connected_points, int facet_nr, std::string face_prefix)
	Constructor for a GenericElement object. Sets all parameters that are known at creation.
virtual	~GenericBoundaryCondition ()=default

Protected Attributes
SimulationClassBase< T > *	m_sim
std::vector< int >	m_boundary_points
std::vector< std::vector< int > >	m_connected_points
std::vector< std::vector< std::reference_wrapper< T > > >	m_capacitance_matrix_elements {}
std::vector< std::vector< std::reference_wrapper< T > > >	m_stiffness_matrix_elements {}
std::vector< std::reference_wrapper< T > >	m_forcing_vector_elements {}
int	m_facet_number {-1}
std::string	m_face_indicator_prefix

Detailed Description

template<typename T>
class GenericBoundaryCondition< T >

Boundary condition abstract base class for the finite element method. All boundary condition implementations should inherit from this class.

Constructor & Destructor Documentation

GenericBoundaryCondition()

template<typename T >

GenericBoundaryCondition< T >::GenericBoundaryCondition	(	SimulationClassBase< T > *	sim,
		std::vector< int >	boundary_points,
		std::vector< std::vector< int > >	connected_points,
		int	facet_nr,
		std::string	face_prefix
	)

Constructor for a GenericElement object. Sets all parameters that are known at creation.

Parameters

sim	The pointer to the sim class.
boundary_points	Vector denoting which of the nodes have that specific boundary condition.
connected_points	Vector of vectors denoting which points are connected to the correcsponding boundary point nodes.
facet_nr	Designation which facet this boundary condition belongs to, to allow mapping it to a shape model.

~GenericBoundaryCondition()

template<typename T >

virtual GenericBoundaryCondition< T >::~GenericBoundaryCondition ( )

virtualdefault

Member Function Documentation

getReferenceToElements()

template<typename T >

void GenericBoundaryCondition< T >::getReferenceToElements ( GenericMatrix< T > &  capacitance_matrix, GenericMatrix< T > &  stiffness_matrix, std::valarray< T > &  forcing_vector  )

virtual

Sets up a referrence_wrapper vector to the elements within the matrix object. This adds a bit of pre-calculation overhead, but always allows const time element access even for matrix object that don't normally have const time random access. This of course assumes a static grid.

Reimplemented in BCSinusoidalTemperature< T >.

registerElementsCsr()

template<typename T >

void GenericBoundaryCondition< T >::registerElementsCsr	(	GenericMatrix< T > &	capacitance_matrix,
		GenericMatrix< T > &	stiffness_matrix
	)

writeBoundaryCondition()

template<typename T >

virtual void GenericBoundaryCondition< T >::writeBoundaryCondition ( )

pure virtual

Implemented in BCConstantHeatFlux< T >, BCSinusoidalTemperature< T >, and BCTopSurfaceEnergyBalance< T >.

Member Data Documentation

m_boundary_points

template<typename T >

std::vector<int> GenericBoundaryCondition< T >::m_boundary_points

protected

m_capacitance_matrix_elements

template<typename T >

std::vector<std::vector<std::reference_wrapper<T> > > GenericBoundaryCondition< T >::m_capacitance_matrix_elements {}

protected

m_connected_points

template<typename T >

std::vector<std::vector<int> > GenericBoundaryCondition< T >::m_connected_points

protected

m_face_indicator_prefix

template<typename T >

std::string GenericBoundaryCondition< T >::m_face_indicator_prefix

protected

m_facet_number

template<typename T >

int GenericBoundaryCondition< T >::m_facet_number {-1}

protected

m_forcing_vector_elements

template<typename T >

std::vector<std::reference_wrapper<T> > GenericBoundaryCondition< T >::m_forcing_vector_elements {}

protected

m_sim

template<typename T >

SimulationClassBase<T>* GenericBoundaryCondition< T >::m_sim

protected

m_stiffness_matrix_elements

template<typename T >

std::vector<std::vector<std::reference_wrapper<T> > > GenericBoundaryCondition< T >::m_stiffness_matrix_elements {}

protected

---

The documentation for this class was generated from the following file:

• src/GenericBoundaryCondition.h
