GenericElement< T > Class Template Reference

Cell/Element abstract base class for the finite element method. All 1D/2D/3D elements should inherit from this class. More...

#include <GenericElement.h>

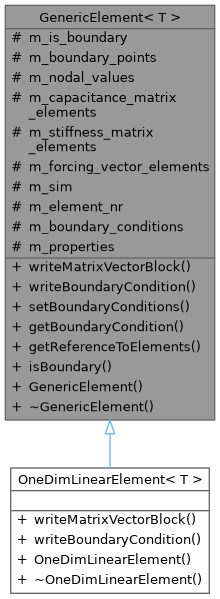

Inheritance diagram for GenericElement< T >:

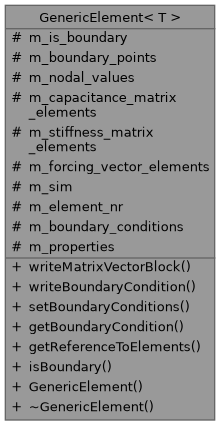

Collaboration diagram for GenericElement< T >:

Public Member Functions
virtual void	writeMatrixVectorBlock ()=0
virtual void	writeBoundaryCondition ()=0
void	setBoundaryConditions (std::map< std::string_view, std::unique_ptr< GenericBoundaryCondition< T > > > &boundary_cond)
	Sets the map of boundary condition objects.
std::map< std::string_view, std::unique_ptr< GenericBoundaryCondition< T > > > &	getBoundaryCondition ()
void	getReferenceToElements (GenericMatrix< T > &capacitance_matrix, GenericMatrix< T > &stiffness_matrix, std::valarray< T > &forcing_vector)
	Sets up a reference_wrapper vector to the elements within the matrix object. This adds a bit of pre-calculation overhead, but always allows const time element access even for matrix object that don't normally have const time random access. This of course assumes a static grid.
bool	isBoundary ()
	GenericElement (bool is_boundary_point, std::map< std::string_view, std::vector< int > > all_boundary_points, std::vector< int > nodal_values, SimulationClassBase< T > *sim, int num_cell, ElementProperties< T > properties)
	Constructor for a GenericElement object. Sets all parameters that are known at creation.
virtual	~GenericElement ()=default

Protected Attributes
bool	m_is_boundary
std::map< std::string_view, std::vector< int > >	m_boundary_points
std::vector< int >	m_nodal_values
std::vector< std::reference_wrapper< T > >	m_capacitance_matrix_elements {}
std::vector< std::reference_wrapper< T > >	m_stiffness_matrix_elements {}
std::vector< std::reference_wrapper< T > >	m_forcing_vector_elements {}
SimulationClassBase< T > *	m_sim {}
int	m_element_nr {-1}
std::map< std::string_view, std::unique_ptr< GenericBoundaryCondition< T > > >	m_boundary_conditions {}
ElementProperties< T >	m_properties {}

Detailed Description

template<typename T>
class GenericElement< T >

Cell/Element abstract base class for the finite element method. All 1D/2D/3D elements should inherit from this class.

Constructor & Destructor Documentation

GenericElement()

template<typename T >

GenericElement< T >::GenericElement	(	bool	is_boundary_point,
		std::map< std::string_view, std::vector< int > >	all_boundary_points,
		std::vector< int >	nodal_values,
		SimulationClassBase< T > *	sim,
		int	num_cell,
		ElementProperties< T >	properties
	)

Constructor for a GenericElement object. Sets all parameters that are known at creation.

Parameters

is_boundary_point	Flag whether this element has boundary nodes or not.
all_boundary_points	A map containg the types of boundary conditions and all the nodes belonging to that type (to allow for multiple boundary conditions in one element).
nodal_values	The node numbers of all nodes within the element. Needed to sort them into the correct position within the matrix.
sim	The pointer to the sim class.
num_cell	The number of the cell.

~GenericElement()

template<typename T >

virtual GenericElement< T >::~GenericElement ( )

virtualdefault

Member Function Documentation

getBoundaryCondition()

template<typename T >

std::map< std::string_view, std::unique_ptr< GenericBoundaryCondition< T > > > & GenericElement< T >::getBoundaryCondition ( )

inline

getReferenceToElements()

template<typename T >

void GenericElement< T >::getReferenceToElements	(	GenericMatrix< T > &	capacitance_matrix,
		GenericMatrix< T > &	stiffness_matrix,
		std::valarray< T > &	forcing_vector
	)

Sets up a reference_wrapper vector to the elements within the matrix object. This adds a bit of pre-calculation overhead, but always allows const time element access even for matrix object that don't normally have const time random access. This of course assumes a static grid.

isBoundary()

template<typename T >

bool GenericElement< T >::isBoundary ( )

inline

setBoundaryConditions()

template<typename T >

void GenericElement< T >::setBoundaryConditions

(

std::map< std::string_view, std::unique_ptr< GenericBoundaryCondition< T > > > &

boundary_cond

)

Sets the map of boundary condition objects.

Parameters

boundary_cond

Map of unique_ptrs to the boundary condition objects of this cell, if it is a boundary cell.

writeBoundaryCondition()

template<typename T >

virtual void GenericElement< T >::writeBoundaryCondition ( )

pure virtual

Implemented in OneDimLinearElement< T >.

writeMatrixVectorBlock()

template<typename T >

virtual void GenericElement< T >::writeMatrixVectorBlock ( )

pure virtual

Implemented in OneDimLinearElement< T >.

Member Data Documentation

m_boundary_conditions

template<typename T >

std::map<std::string_view, std::unique_ptr<GenericBoundaryCondition<T> > > GenericElement< T >::m_boundary_conditions {}

protected

m_boundary_points

template<typename T >

std::map<std::string_view, std::vector<int> > GenericElement< T >::m_boundary_points

protected

m_capacitance_matrix_elements

template<typename T >

std::vector<std::reference_wrapper<T> > GenericElement< T >::m_capacitance_matrix_elements {}

protected

m_element_nr

template<typename T >

int GenericElement< T >::m_element_nr {-1}

protected

m_forcing_vector_elements

template<typename T >

std::vector<std::reference_wrapper<T> > GenericElement< T >::m_forcing_vector_elements {}

protected

m_is_boundary

template<typename T >

bool GenericElement< T >::m_is_boundary

protected

m_nodal_values

template<typename T >

std::vector<int> GenericElement< T >::m_nodal_values

protected

m_properties

template<typename T >

ElementProperties<T> GenericElement< T >::m_properties {}

protected

m_sim

template<typename T >

SimulationClassBase<T>* GenericElement< T >::m_sim {}

protected

m_stiffness_matrix_elements

template<typename T >

std::vector<std::reference_wrapper<T> > GenericElement< T >::m_stiffness_matrix_elements {}

protected

---

The documentation for this class was generated from the following file:

• src/GenericElement.h
