ShapeBase< T > Class Template Reference

Managing class for all types of meshes. Provides the interface to all the needed data when working with a mesh in a pseudo 3D case. More...

#include <ShapeBase.h>

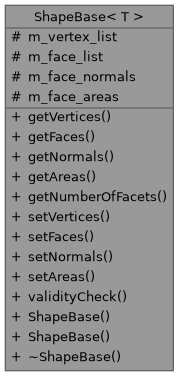

Collaboration diagram for ShapeBase< T >:

Public Member Functions
const std::vector< std::vector< T > > &	getVertices () const
const std::vector< std::vector< int > > &	getFaces () const
const std::vector< std::vector< T > > &	getNormals () const
const std::vector< T > &	getAreas () const
int	getNumberOfFacets () const
void	setVertices (const std::vector< std::vector< T > > vertex_list)
void	setFaces (const std::vector< std::vector< int > > &face_list)
void	setNormals (const std::vector< std::vector< T > > face_normals)
void	setAreas (const std::vector< T > face_areas)
void	validityCheck ()
	Checks whether the mesh has at least one valid facet and whether all vectors of expected equal length are actually equal or not.
	ShapeBase ()
	Constructor for an empty ShapeBase object.
	ShapeBase (std::vector< std::vector< T > > vertex_list, std::vector< std::vector< int > > face_list, std::vector< std::vector< T > > face_normals, std::vector< T > face_areas)
	Constructor for a filled ShapeBase object.
	~ShapeBase ()=default

Protected Attributes
std::vector< std::vector< T > >	m_vertex_list {}
std::vector< std::vector< int > >	m_face_list
std::vector< std::vector< T > >	m_face_normals {}
std::vector< T >	m_face_areas {}

Detailed Description

template<typename T>
class ShapeBase< T >

Managing class for all types of meshes. Provides the interface to all the needed data when working with a mesh in a pseudo 3D case.

Constructor & Destructor Documentation

ShapeBase() [1/2]

template<typename T >

ShapeBase< T >::ShapeBase

(

)

Constructor for an empty ShapeBase object.

ShapeBase() [2/2]

template<typename T >

ShapeBase< T >::ShapeBase	(	std::vector< std::vector< T > >	vertex_list,
		std::vector< std::vector< int > >	face_list,
		std::vector< std::vector< T > >	face_normals,
		std::vector< T >	face_areas
	)

Constructor for a filled ShapeBase object.

Parameters

vertex_list	List of the 3D coordinates of all vertices within a mesh.
face_list	List of the vertices belonging to all faces within a mesh.
face_normals	List of the 3D coordinates of all normal vectors of the faces within a mesh.
face_areas	List of the areas of all faces within a mesh.

~ShapeBase()

template<typename T >

ShapeBase< T >::~ShapeBase ( )

default

Member Function Documentation

getAreas()

template<typename T >

const std::vector< T > & ShapeBase< T >::getAreas ( ) const

inline

getFaces()

template<typename T >

const std::vector< std::vector< int > > & ShapeBase< T >::getFaces ( ) const

inline

getNormals()

template<typename T >

const std::vector< std::vector< T > > & ShapeBase< T >::getNormals ( ) const

inline

getNumberOfFacets()

template<typename T >

int ShapeBase< T >::getNumberOfFacets ( ) const

inline

getVertices()

template<typename T >

const std::vector< std::vector< T > > & ShapeBase< T >::getVertices ( ) const

inline

setAreas()

template<typename T >

void ShapeBase< T >::setAreas ( const std::vector< T >  face_areas )

inline

setFaces()

template<typename T >

void ShapeBase< T >::setFaces ( const std::vector< std::vector< int > > &  face_list )

inline

setNormals()

template<typename T >

void ShapeBase< T >::setNormals ( const std::vector< std::vector< T > >  face_normals )

inline

setVertices()

template<typename T >

void ShapeBase< T >::setVertices ( const std::vector< std::vector< T > >  vertex_list )

inline

validityCheck()

template<typename T >

void ShapeBase< T >::validityCheck

(

)

Checks whether the mesh has at least one valid facet and whether all vectors of expected equal length are actually equal or not.

Member Data Documentation

m_face_areas

template<typename T >

std::vector<T> ShapeBase< T >::m_face_areas {}

protected

m_face_list

template<typename T >

std::vector<std::vector<int> > ShapeBase< T >::m_face_list

protected

m_face_normals

template<typename T >

std::vector<std::vector<T> > ShapeBase< T >::m_face_normals {}

protected

m_vertex_list

template<typename T >

std::vector<std::vector<T> > ShapeBase< T >::m_vertex_list {}

protected

---

The documentation for this class was generated from the following file:

• src/ShapeBase.h
