DenseMatrix< T > Class Template Reference

Concrete implemenatation of a matrix class representing a dense matrix. Offers basic access and element wise arithmetic functionality and mathematical matrix product. More...

#include <DenseMatrix.h>

Inheritance diagram for DenseMatrix< T >:

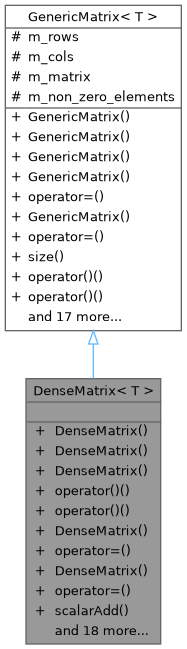

Collaboration diagram for DenseMatrix< T >:

Public Member Functions
	DenseMatrix ()
	Constructor used for buildAtRuntime.
	DenseMatrix (int rows, int cols)
	Constructor for an empty DenseMatrix object whose value array holds rows*cols values.
	DenseMatrix (int rows, int cols, const std::valarray< T > &values)
	Constructor for a DenseMatrix class whose value array holds rows*cols values given by the user. Can throw an std::ivalid_argument if provided with a value array of different size than rows*cols.
T &	operator() (int rows, int cols) override
	Parentheses operator to allow access to the matrix values as Matrix(row,column).
T	operator() (int rows, int cols) const override
	Parentheses operator to allow access to the matrix values as Matrix(row,column) in a constant context.
	DenseMatrix (const DenseMatrix &)=default
DenseMatrix &	operator= (const DenseMatrix &)=default
	DenseMatrix (DenseMatrix &&)=default
DenseMatrix &	operator= (DenseMatrix &&)=default
std::valarray< T >	scalarAdd (T value) const override
	Addition of a scalar to the matrix values element-wise.
std::valarray< T >	matrixAddElementWise (const DenseMatrix &dense_matrix) const
	Addition of two DenseMatrix objects element-wise.
std::valarray< T >	scalarSubtract (T value) const override
	Subtraction of a scalar from the matrix values element-wise.
std::valarray< T >	matrixSubtractElementWise (const DenseMatrix &dense_matrix) const
	Subtraction of two DenseMatrix objects element-wise.
std::valarray< T >	scalarMultiply (T value) const override
	Multiplication of a scalar to the matrix values element-wise.
std::valarray< T >	matrixMultiplyElementWise (const DenseMatrix &dense_matrix) const
	Multiplication of two DenseMatrix objects element-wise.
DenseMatrix< T >	matrixMultiply (const DenseMatrix &dense_matrix) const
	Mathematical matrix multiplication of two DenseMatrix objects.
std::valarray< T >	scalarDivide (T value) const override
	Division of a scalar from the matrix values element-wise.
std::valarray< T >	matrixDivideElementWise (const DenseMatrix &dense_matrix) const
	Division of two DenseMatrix objects element-wise.
std::valarray< T >	vectorElemAdd (const std::valarray< T > &value) const override
	Addition of a vector to the matrix values element-wise.
std::valarray< T >	vectorElemSubtract (const std::valarray< T > &value) const override
	Subtraction of a vector from the matrix values element-wise.
std::valarray< T >	vectorElemMultiply (const std::valarray< T > &value) const override
	Multiplication of a vector to the matrix values element-wise.
std::valarray< T >	vectorElemDivide (const std::valarray< T > &value) const override
	Division of a vector from the matrix values element-wise.
std::valarray< T >	matrixVectorMultiplication (const std::valarray< T > &value) const override
	Matrix-vector-multiplication for dense matrices.
void	buildAtRuntime (int rows, int cols) override
	Updates row, col values and array size if creation was deferred at invocation of constructor.
void	updateNonZeroElements () override
	Updates the vector containing the non-zero element row-col pairs. Used for optimization.
const std::vector< std::pair< int, int > > &	getNonZeroElements () override
const MatrixType	getMatrixType () override
	~DenseMatrix () override=default
Public Member Functions inherited from GenericMatrix< T >
	GenericMatrix ()
	Constructor for an empty GenericMatrix object. This should only be used for dynamically created matrices.
	GenericMatrix (int rows, int cols)
	Constructor for an empty GenericMatrix object whose value array holds rows*cols values.
	GenericMatrix (int rows, int cols, const std::valarray< T > &values, bool allow_mismatched_size)
	Constructor for a GenericMatrix object whose value array holds rows*cols values given by the user. Can throw an std::ivalid_argument if provided with a value array of different size than rows*cols.
	GenericMatrix (const GenericMatrix &)=default
GenericMatrix &	operator= (const GenericMatrix &)=default
	GenericMatrix (GenericMatrix &&)=default
GenericMatrix &	operator= (GenericMatrix &&)=default
std::pair< int, int >	size () const
	Function that returns the size of the matrix as a pair in (rows, columns) format.
virtual void	registerElement (T value, int rows, int cols)
void	zeroMatrix ()
	Function that zeros out the matrix.
void	overwriteMatrixValues (const std::valarray< T > &value)
	Overwrites the matrix values with a new valarray. This is used for optimized overwrite when arithmetic operations on multiple matrices are used.
virtual	~GenericMatrix ()=default

Additional Inherited Members
Protected Attributes inherited from GenericMatrix< T >
int	m_rows {0}
int	m_cols {0}
std::valarray< T >	m_matrix {}
std::vector< std::pair< int, int > >	m_non_zero_elements

Detailed Description

template<typename T>
class DenseMatrix< T >

Concrete implemenatation of a matrix class representing a dense matrix. Offers basic access and element wise arithmetic functionality and mathematical matrix product.

Constructor & Destructor Documentation

DenseMatrix() [1/5]

template<typename T >

DenseMatrix< T >::DenseMatrix

(

)

Constructor used for buildAtRuntime.

DenseMatrix() [2/5]

template<typename T >

DenseMatrix< T >::DenseMatrix	(	int	rows,
		int	cols
	)

Constructor for an empty DenseMatrix object whose value array holds rows*cols values.

Parameters

rows	The number of rows.
cols	The number of columns.

DenseMatrix() [3/5]

template<typename T >

DenseMatrix< T >::DenseMatrix	(	int	rows,
		int	cols,
		const std::valarray< T > &	values
	)

Constructor for a DenseMatrix class whose value array holds rows*cols values given by the user. Can throw an std::ivalid_argument if provided with a value array of different size than rows*cols.

Parameters

rows	The number of rows.
cols	The number of columns.
values	The values to be stored in the m_matrix valarray.

DenseMatrix() [4/5]

template<typename T >

DenseMatrix< T >::DenseMatrix ( const DenseMatrix< T > &  )

default

DenseMatrix() [5/5]

template<typename T >

DenseMatrix< T >::DenseMatrix ( DenseMatrix< T > &&  )

default

~DenseMatrix()

template<typename T >

DenseMatrix< T >::~DenseMatrix ( )

overridedefault

Member Function Documentation

buildAtRuntime()

template<typename T >

void DenseMatrix< T >::buildAtRuntime ( int  rows, int  cols  )

overridevirtual

Updates row, col values and array size if creation was deferred at invocation of constructor.

Template Parameters

T	Numeric type used in the simulation (e.g., float, double).

Parameters

rows	The number of rows of the matrix.
cols	The number of columns of the matrix.

Implements GenericMatrix< T >.

getMatrixType()

template<typename T >

const MatrixType DenseMatrix< T >::getMatrixType ( )

inlineoverridevirtual

Implements GenericMatrix< T >.

getNonZeroElements()

template<typename T >

const std::vector< std::pair< int, int > > & DenseMatrix< T >::getNonZeroElements ( )

inlineoverridevirtual

Implements GenericMatrix< T >.

matrixAddElementWise()

template<typename T >

std::valarray< T > DenseMatrix< T >::matrixAddElementWise

(

const DenseMatrix< T > &

dense_matrix

)

const

Addition of two DenseMatrix objects element-wise.

Parameters

dense_matrix

The DenseMatrix object to be added to the calling object.

matrixDivideElementWise()

template<typename T >

std::valarray< T > DenseMatrix< T >::matrixDivideElementWise

(

const DenseMatrix< T > &

dense_matrix

)

const

Division of two DenseMatrix objects element-wise.

Parameters

dense_matrix

The DenseMatrix object to divide the calling object by.

matrixMultiply()

template<typename T >

DenseMatrix< T > DenseMatrix< T >::matrixMultiply

(

const DenseMatrix< T > &

dense_matrix

)

const

Mathematical matrix multiplication of two DenseMatrix objects.

Parameters

dense_matrix

The DenseMatrix object to be multiplied from the right to the calling object.

matrixMultiplyElementWise()

template<typename T >

std::valarray< T > DenseMatrix< T >::matrixMultiplyElementWise

(

const DenseMatrix< T > &

dense_matrix

)

const

Multiplication of two DenseMatrix objects element-wise.

Parameters

dense_matrix

The DenseMatrix object to be multiplied to the calling object.

matrixSubtractElementWise()

template<typename T >

std::valarray< T > DenseMatrix< T >::matrixSubtractElementWise

(

const DenseMatrix< T > &

dense_matrix

)

const

Subtraction of two DenseMatrix objects element-wise.

Parameters

dense_matrix

The DenseMatrix object to be subtracted from the calling object.

matrixVectorMultiplication()

template<typename T >

std::valarray< T > DenseMatrix< T >::matrixVectorMultiplication ( const std::valarray< T > &  value ) const

overridevirtual

Matrix-vector-multiplication for dense matrices.

Template Parameters

T	Numeric type used in the simulation (e.g., float, double)

Parameters

value

The vector with the values to multiply to the matrix from the right.

Returns

std::valarray<T> std::valarray<T> The resulting vector.

Implements GenericMatrix< T >.

operator()() [1/2]

template<typename T >

T DenseMatrix< T >::operator() ( int  rows, int  cols  ) const

overridevirtual

Parentheses operator to allow access to the matrix values as Matrix(row,column) in a constant context.

Parameters

rows	the row to access.
column	the column to access.

Implements GenericMatrix< T >.

operator()() [2/2]

template<typename T >

T & DenseMatrix< T >::operator() ( int  rows, int  cols  )

overridevirtual

Parentheses operator to allow access to the matrix values as Matrix(row,column).

Parameters

rows	the row to access.
column	the column to access.

Implements GenericMatrix< T >.

operator=() [1/2]

template<typename T >

DenseMatrix & DenseMatrix< T >::operator= ( const DenseMatrix< T > &  )

default

operator=() [2/2]

template<typename T >

DenseMatrix & DenseMatrix< T >::operator= ( DenseMatrix< T > &&  )

default

scalarAdd()

template<typename T >

std::valarray< T > DenseMatrix< T >::scalarAdd ( T  value ) const

overridevirtual

Addition of a scalar to the matrix values element-wise.

Parameters

value

The scalar value to be added to the calling object.

Implements GenericMatrix< T >.

scalarDivide()

template<typename T >

std::valarray< T > DenseMatrix< T >::scalarDivide ( T  value ) const

overridevirtual

Division of a scalar from the matrix values element-wise.

Parameters

value

The scalar value to divide to the calling object by.

Implements GenericMatrix< T >.

scalarMultiply()

template<typename T >

std::valarray< T > DenseMatrix< T >::scalarMultiply ( T  value ) const

overridevirtual

Multiplication of a scalar to the matrix values element-wise.

Parameters

value

The scalar value to be multiplied to the calling object.

Implements GenericMatrix< T >.

scalarSubtract()

template<typename T >

std::valarray< T > DenseMatrix< T >::scalarSubtract ( T  value ) const

overridevirtual

Subtraction of a scalar from the matrix values element-wise.

Parameters

value

The scalar value to be subtracted from the calling object.

Implements GenericMatrix< T >.

updateNonZeroElements()

template<typename T >

void DenseMatrix< T >::updateNonZeroElements ( )

overridevirtual

Updates the vector containing the non-zero element row-col pairs. Used for optimization.

Template Parameters

T	Numeric type used in the simulation (e.g., float, double)

Implements GenericMatrix< T >.

vectorElemAdd()

template<typename T >

std::valarray< T > DenseMatrix< T >::vectorElemAdd ( const std::valarray< T > &  value ) const

overridevirtual

Addition of a vector to the matrix values element-wise.

Parameters

value

The vector values to be added to the calling object.

Implements GenericMatrix< T >.

vectorElemDivide()

template<typename T >

std::valarray< T > DenseMatrix< T >::vectorElemDivide ( const std::valarray< T > &  value ) const

overridevirtual

Division of a vector from the matrix values element-wise.

Parameters

value

The vector value to divide to the calling object by.

Implements GenericMatrix< T >.

vectorElemMultiply()

template<typename T >

std::valarray< T > DenseMatrix< T >::vectorElemMultiply ( const std::valarray< T > &  value ) const

overridevirtual

Multiplication of a vector to the matrix values element-wise.

Parameters

value

The vector value to be multiplied to the calling object.

Implements GenericMatrix< T >.

vectorElemSubtract()

template<typename T >

std::valarray< T > DenseMatrix< T >::vectorElemSubtract ( const std::valarray< T > &  value ) const

overridevirtual

Subtraction of a vector from the matrix values element-wise.

Parameters

value

The vector value to be subtracted from the calling object.

Implements GenericMatrix< T >.

---

The documentation for this class was generated from the following file:

• src/DenseMatrix.h
