SimulationClassBase< T > Class Template Reference

#include <SimulationClassBase.h>

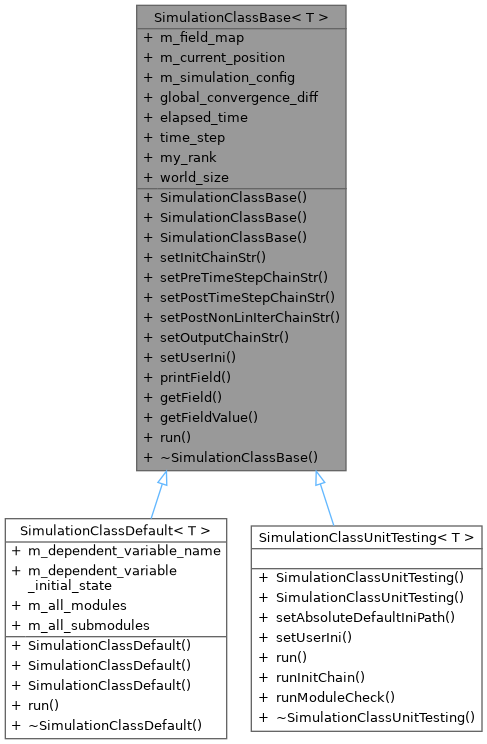

Inheritance diagram for SimulationClassBase< T >:

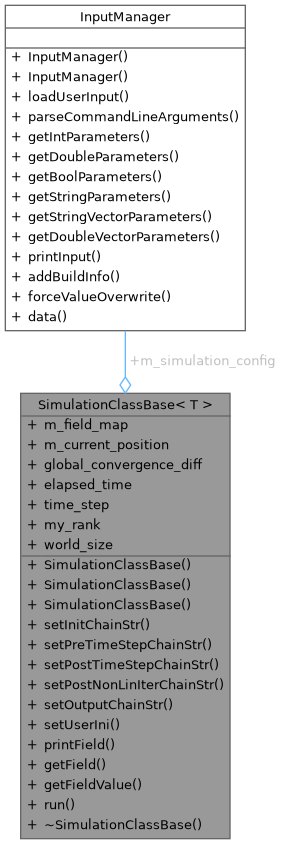

Collaboration diagram for SimulationClassBase< T >:

Public Member Functions
	SimulationClassBase ()
	SimulationClassBase (const int argc, const char *argv[])
	Constructs a SimulationClassBase object and initializes its configuration.
	SimulationClassBase (const std::string &user_ini)
void	setInitChainStr ()
void	setPreTimeStepChainStr ()
void	setPostTimeStepChainStr ()
void	setPostNonLinIterChainStr ()
void	setOutputChainStr ()
virtual void	setUserIni (const std::string &user_ini)
void	printField (const std::string &key)
const std::valarray< T > &	getField (const std::string &key) const
const T &	getFieldValue (const std::string &key, int pos) const
virtual int	run ()=0
virtual	~SimulationClassBase ()=default

Public Attributes
std::map< std::string, std::valarray< T > >	m_field_map {}
std::string_view	m_current_position
InputManager	m_simulation_config {"ini_files/default.ini"}
T	global_convergence_diff
T	elapsed_time {0}
int	time_step {0}
int	my_rank {0}
int	world_size {1}

Constructor & Destructor Documentation

SimulationClassBase() [1/3]

template<typename T >

SimulationClassBase< T >::SimulationClassBase

(

)

SimulationClassBase() [2/3]

template<typename T >

SimulationClassBase< T >::SimulationClassBase	(	const int	argc,
		const char *	argv[]
	)

Constructs a SimulationClassBase object and initializes its configuration.

This constructor implements the command-line-driven configuration for the simulation by forwarding the provided argc and argv parameters to the internal simulation configuration object (m_simulation_config). It handles:

• Parsing the input .ini file specified via the -i option.
• Applying any additional key=value overrides provided via the command line.

After construction, the simulation object is ready to run with a fully initialized configuration, combining the .ini file and any CLI overrides.

Usage: int main(int argc, char* argv[]) { SimulationClassBase<MySimType> sim(argc, argv); sim.run(); // Run simulation using parsed ini + CLI overrides }

Template Parameters

T	The template type parameter for the SimulationClassBase.

Parameters

argc	The number of command-line arguments, typically passed from main().
argv	The array of command-line argument strings, typically passed from main().

Note

• The command-line parsing is entirely handled by m_simulation_config.
• Users may provide multiple key=value overrides in the command line, e.g., ./tpm -i config.ini param1=42 param2=foo.
• This constructor does not start the simulation; it only sets up the configuration.

SimulationClassBase() [3/3]

template<typename T >

SimulationClassBase< T >::SimulationClassBase

(

const std::string &

user_ini

)

~SimulationClassBase()

template<typename T >

virtual SimulationClassBase< T >::~SimulationClassBase ( )

virtualdefault

Member Function Documentation

getField()

template<typename T >

const std::valarray< T > & SimulationClassBase< T >::getField

(

const std::string &

key

)

const

getFieldValue()

template<typename T >

const T & SimulationClassBase< T >::getFieldValue	(	const std::string &	key,
		int	pos
	)		const

printField()

template<typename T >

void SimulationClassBase< T >::printField

(

const std::string &

key

)

run()

template<typename T >

virtual int SimulationClassBase< T >::run ( )

pure virtual

Implemented in SimulationClassDefault< T >, and SimulationClassUnitTesting< T >.

setInitChainStr()

template<typename T >

void SimulationClassBase< T >::setInitChainStr ( )

inline

setOutputChainStr()

template<typename T >

void SimulationClassBase< T >::setOutputChainStr ( )

inline

setPostNonLinIterChainStr()

template<typename T >

void SimulationClassBase< T >::setPostNonLinIterChainStr ( )

inline

setPostTimeStepChainStr()

template<typename T >

void SimulationClassBase< T >::setPostTimeStepChainStr ( )

inline

setPreTimeStepChainStr()

template<typename T >

void SimulationClassBase< T >::setPreTimeStepChainStr ( )

inline

setUserIni()

template<typename T >

void SimulationClassBase< T >::setUserIni ( const std::string &  user_ini )

virtual

Reimplemented in SimulationClassUnitTesting< T >.

Member Data Documentation

elapsed_time

template<typename T >

T SimulationClassBase< T >::elapsed_time {0}

global_convergence_diff

template<typename T >

T SimulationClassBase< T >::global_convergence_diff

m_current_position

template<typename T >

std::string_view SimulationClassBase< T >::m_current_position

m_field_map

template<typename T >

std::map<std::string, std::valarray<T> > SimulationClassBase< T >::m_field_map {}

m_simulation_config

template<typename T >

InputManager SimulationClassBase< T >::m_simulation_config {"ini_files/default.ini"}

my_rank

template<typename T >

int SimulationClassBase< T >::my_rank {0}

time_step

template<typename T >

int SimulationClassBase< T >::time_step {0}

world_size

template<typename T >

int SimulationClassBase< T >::world_size {1}

---

The documentation for this class was generated from the following file:

• src/SimulationClassBase.h
