HeatConductivityTwoLayers< T > Class Template Reference

#include <HeatConductivityTwoLayers.h>

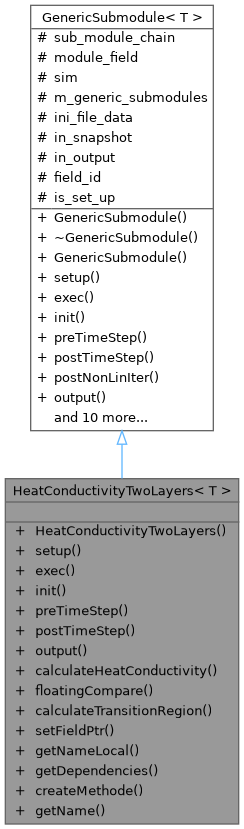

Inheritance diagram for HeatConductivityTwoLayers< T >:

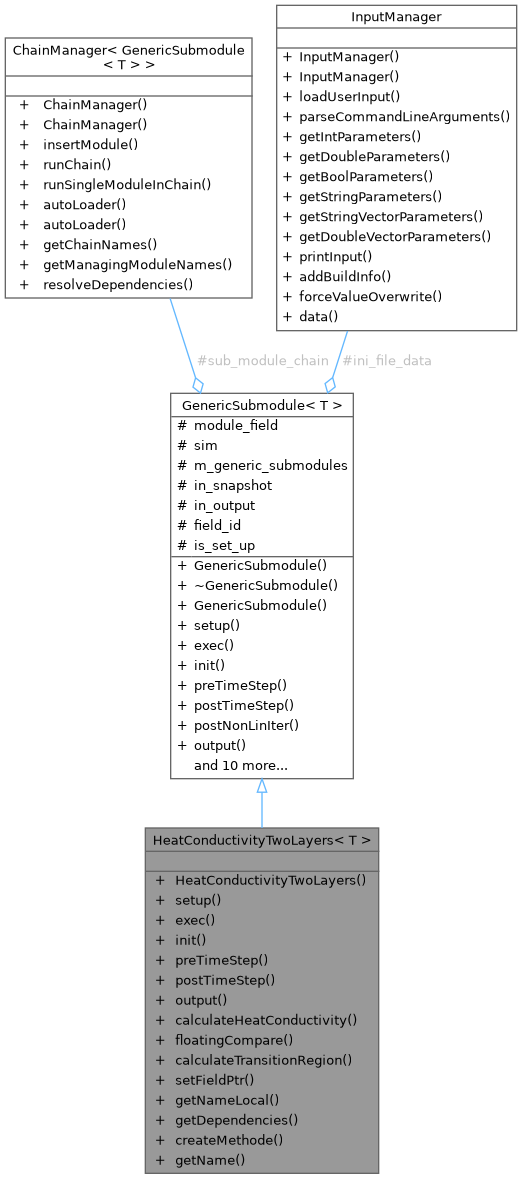

Collaboration diagram for HeatConductivityTwoLayers< T >:

Public Member Functions
	HeatConductivityTwoLayers (SimulationClassBase< T > *sim)
bool	setup (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules) override
bool	exec (std::string_view param) override
bool	init () override
bool	preTimeStep () override
bool	postTimeStep () override
bool	output () override
void	calculateHeatConductivity ()
bool	floatingCompare (T f1, T f2, T epsilon)
	Equals comparison for two floating point numbers.
void	calculateTransitionRegion ()
	Calculates the node after which the layer changes.
void	setFieldPtr (std::shared_ptr< std::valarray< T > > field_ptr) override
std::string_view	getNameLocal () const override
std::vector< std::string >	getDependencies () const override
Public Member Functions inherited from GenericSubmodule< T >
	GenericSubmodule ()
	Constructor without arguments. Will be employed when using the static modules registry.
virtual	~GenericSubmodule ()=default
	GenericSubmodule (const SimulationClassBase< T > *l_sim)
	Constructor to be preferably used when a module is created during runtime.
virtual bool	postNonLinIter ()
std::vector< std::string >	getSubmoduleList () const
bool	isSetUp ()
void	submodulesSetUp ()
void	setSimPointer (SimulationClassBase< T > *sim)
	Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.
void	setSubmodules (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
	Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to the field pointer of the managing module as a way to communicate between submodules.
void	writeToGlobalIniContent (std::ofstream &global_stream)
	Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".
void	overwriteLocalIniContent (const std::unordered_map< std::string, std::any > &global_ini_content)
	Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Static Public Member Functions
static std::shared_ptr< GenericSubmodule< T > >	createMethode (SimulationClassBase< T > *sim)
static std::string	getName ()

Additional Inherited Members
Protected Attributes inherited from GenericSubmodule< T >
ChainManager< GenericSubmodule< T > >	sub_module_chain
std::shared_ptr< std::valarray< T > >	module_field
const SimulationClassBase< T > *	sim {}
std::vector< std::string >	m_generic_submodules
InputManager	ini_file_data
bool	in_snapshot {false}
bool	in_output {false}
char	field_id
bool	is_set_up {false}

Constructor & Destructor Documentation

HeatConductivityTwoLayers()

template<typename T >

HeatConductivityTwoLayers< T >::HeatConductivityTwoLayers

(

SimulationClassBase< T > *

sim

)

Member Function Documentation

calculateHeatConductivity()

template<typename T >

void HeatConductivityTwoLayers< T >::calculateHeatConductivity

(

)

calculateTransitionRegion()

template<typename T >

void HeatConductivityTwoLayers< T >::calculateTransitionRegion

(

)

Calculates the node after which the layer changes.

Template Parameters

T

createMethode()

template<typename T >

static std::shared_ptr< GenericSubmodule< T > > HeatConductivityTwoLayers< T >::createMethode ( SimulationClassBase< T > *  sim )

inlinestatic

exec()

template<typename T >

bool HeatConductivityTwoLayers< T >::exec ( std::string_view  param )

overridevirtual

Implements GenericSubmodule< T >.

floatingCompare()

template<typename T >

bool HeatConductivityTwoLayers< T >::floatingCompare	(	T	f1,
		T	f2,
		T	epsilon
	)

Equals comparison for two floating point numbers.

Template Parameters

T

Parameters

f1	The first floating point number.
f2	The second floating point number.
epsilon	The allowed difference between the two (it functions as both an absolute and relative value)

Returns

true

false

getDependencies()

template<typename T >

std::vector< std::string > HeatConductivityTwoLayers< T >::getDependencies ( ) const

inlineoverridevirtual

Reimplemented from GenericSubmodule< T >.

getName()

template<typename T >

static std::string HeatConductivityTwoLayers< T >::getName ( )

inlinestatic

getNameLocal()

template<typename T >

std::string_view HeatConductivityTwoLayers< T >::getNameLocal ( ) const

inlineoverridevirtual

Implements GenericSubmodule< T >.

init()

template<typename T >

bool HeatConductivityTwoLayers< T >::init ( )

overridevirtual

Reimplemented from GenericSubmodule< T >.

output()

template<typename T >

bool HeatConductivityTwoLayers< T >::output ( )

overridevirtual

Reimplemented from GenericSubmodule< T >.

postTimeStep()

template<typename T >

bool HeatConductivityTwoLayers< T >::postTimeStep ( )

overridevirtual

Reimplemented from GenericSubmodule< T >.

preTimeStep()

template<typename T >

bool HeatConductivityTwoLayers< T >::preTimeStep ( )

overridevirtual

Reimplemented from GenericSubmodule< T >.

setFieldPtr()

template<typename T >

void HeatConductivityTwoLayers< T >::setFieldPtr ( std::shared_ptr< std::valarray< T > >  field_ptr )

inlineoverridevirtual

Reimplemented from GenericSubmodule< T >.

setup()

template<typename T >

bool HeatConductivityTwoLayers< T >::setup ( std::vector< std::shared_ptr< GenericSubmodule< T > > >  all_submodules )

overridevirtual

Reimplemented from GenericSubmodule< T >.

---

The documentation for this class was generated from the following file:

• modules/heat_conductivity/HeatConductivityTwoLayers.h
