FluxSmoothingTool< T > Class Template Reference

Managing module that adaptively reduces the timestep to limit excessive temperature changes. More...

#include <FluxSmoothingTool.h>

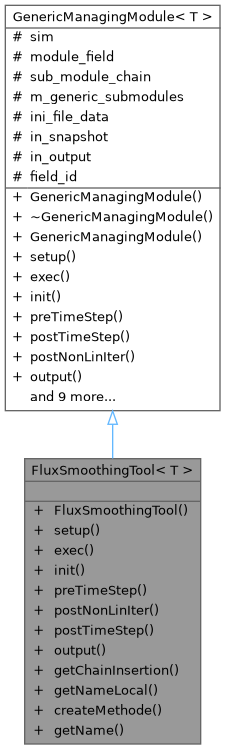

Inheritance diagram for FluxSmoothingTool< T >:

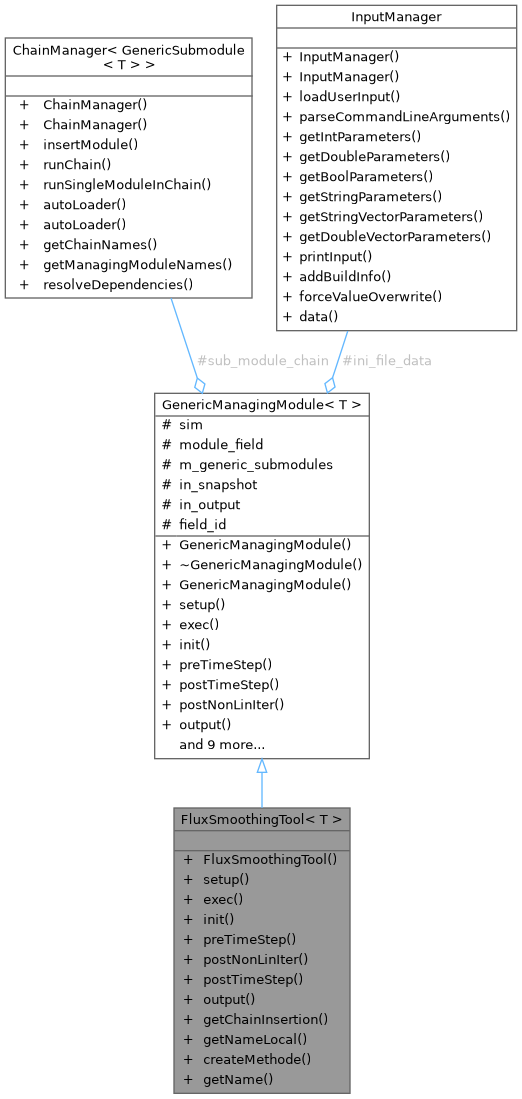

Collaboration diagram for FluxSmoothingTool< T >:

Public Member Functions
	FluxSmoothingTool (SimulationClassBase< T > *sim)
bool	setup (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules) override
bool	exec (std::string_view param) override
bool	init () override
bool	preTimeStep () override
bool	postNonLinIter () override
bool	postTimeStep () override
bool	output () override
std::vector< std::string >	getChainInsertion () const override
std::string_view	getNameLocal () const override
Public Member Functions inherited from GenericManagingModule< T >
	GenericManagingModule ()
	Constructor without arguments. Will be employed when using the static modules registry.
virtual	~GenericManagingModule ()=default
	GenericManagingModule (SimulationClassBase< T > *l_sim)
	Constructor to be preferably used when a module is created during runtime.
virtual std::vector< std::string >	getDependencies () const
virtual void	setSubmoduleList (std::vector< std::string > submodules)
std::vector< std::string >	getSubmoduleList () const
void	setSimPointer (SimulationClassBase< T > *sim)
	Setter function for the sim pointer. As the module is usually registered during static initialization when the sim class is not yet existing, this function is needed to set the pointer.
void	setSubmodules (std::vector< std::shared_ptr< GenericSubmodule< T > > > all_submodules)
	Sets all the submodules of this module into their corresponding chains. Also sets their field-pointers to this->module_field as a way to communicate between submodules.
void	writeToGlobalIniContent (std::ofstream &global_stream)
	Function that writes the local ini file contents to the global ini file stream. "Tags" the keys with the name of the module in the format "module_name$key".
void	overwriteLocalIniContent (const std::unordered_map< std::string, std::any > &global_ini_content)
	Writes the (already trimmed to the local content) data from the global ini file to the local ini file. This only overwrites the internal data and not the file contents itself.

Static Public Member Functions
static std::shared_ptr< GenericManagingModule< T > >	createMethode (SimulationClassBase< T > *sim)
static std::string	getName ()

Additional Inherited Members
Protected Attributes inherited from GenericManagingModule< T >
SimulationClassBase< T > *	sim {}
std::shared_ptr< std::valarray< T > >	module_field
ChainManager< GenericSubmodule< T > >	sub_module_chain
std::vector< std::string >	m_generic_submodules
InputManager	ini_file_data
bool	in_snapshot {false}
bool	in_output {false}
char	field_id

Detailed Description

template<typename T>
class FluxSmoothingTool< T >

Managing module that adaptively reduces the timestep to limit excessive temperature changes.

This module implements an artificial flux smoothing mechanism based on the description in Schörghofer & Khatiwala (2024). During the simulation, if the change in surface temperature exceeds defined thresholds, the timestep is temporarily reduced to stabilize the solution. Once the temperatures have stabilized over a few substeps, the original timestep is restored.

Template Parameters

T	Type of numerical values used (e.g., double or float)

• Stores temperature values from the previous timestep.
• Uses upper and lower thresholds to determine when smoothing is needed.
• Reduces timestep by a factor of 5 when smoothing is activated.
• Tracks smoothing progress using m_smoothing_counter and m_flux_smoothing_active.
• Resets m_pre_iter at the beginning of each timestep to capture initial temperatures correctly.

Note

This module is inefficient for resource-intensive simulations because it rewinds and subdivides timesteps. It is primarily intended for testing or comparison purposes.

Constructor & Destructor Documentation

FluxSmoothingTool()

template<typename T >

FluxSmoothingTool< T >::FluxSmoothingTool

(

SimulationClassBase< T > *

sim

)

Member Function Documentation

createMethode()

template<typename T >

static std::shared_ptr< GenericManagingModule< T > > FluxSmoothingTool< T >::createMethode ( SimulationClassBase< T > *  sim )

inlinestatic

exec()

template<typename T >

bool FluxSmoothingTool< T >::exec ( std::string_view  param )

overridevirtual

Implements GenericManagingModule< T >.

getChainInsertion()

template<typename T >

std::vector< std::string > FluxSmoothingTool< T >::getChainInsertion ( ) const

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

getName()

template<typename T >

static std::string FluxSmoothingTool< T >::getName ( )

inlinestatic

getNameLocal()

template<typename T >

std::string_view FluxSmoothingTool< T >::getNameLocal ( ) const

inlineoverridevirtual

Implements GenericManagingModule< T >.

init()

template<typename T >

bool FluxSmoothingTool< T >::init ( )

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

output()

template<typename T >

bool FluxSmoothingTool< T >::output ( )

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

postNonLinIter()

template<typename T >

bool FluxSmoothingTool< T >::postNonLinIter ( )

inlineoverridevirtual

Reimplemented from GenericManagingModule< T >.

postTimeStep()

template<typename T >

bool FluxSmoothingTool< T >::postTimeStep ( )

overridevirtual

Reimplemented from GenericManagingModule< T >.

preTimeStep()

template<typename T >

bool FluxSmoothingTool< T >::preTimeStep ( )

overridevirtual

Reimplemented from GenericManagingModule< T >.

setup()

template<typename T >

bool FluxSmoothingTool< T >::setup ( std::vector< std::shared_ptr< GenericSubmodule< T > > >  all_submodules )

overridevirtual

Reimplemented from GenericManagingModule< T >.

---

The documentation for this class was generated from the following file:

• modules/tools/FluxSmoothingTool.h
